7-T06 Vehicle Tracker with GPS/GSM/GPRS System
TR06 Vehicle Tracker is a product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It makes remote petrol and power cutoff possible and can automatically reboot after the car breakdown. Equipped with SOS button, TR06 will send SOS alarm under danger circumstances.
- ACC detection
Update and report the vehicle’s status quickly and accurately.
- Real time position
With built-in high sensitive GPS chipset and GSM/GPS antenna, the device will accept the GPS satellite signal automatically and pinpoint the position
- Remote petrol/power cutoff
Send command through SMS or tracking website to cut off the electricity/petrol connection of the vehicle, leaving the illegal user hopeless.
- SOS
In case of emergency without access to cell phone, you can press the SOS button and the device will send alert message to SOS number.
- Voice monitoring
There is no distance for voice monitoring, you can monitor the voice anytime anywhere.
- Vibration alert
When the device sensor detects any vibration, the device will send alarm to your mobile and then dial it.

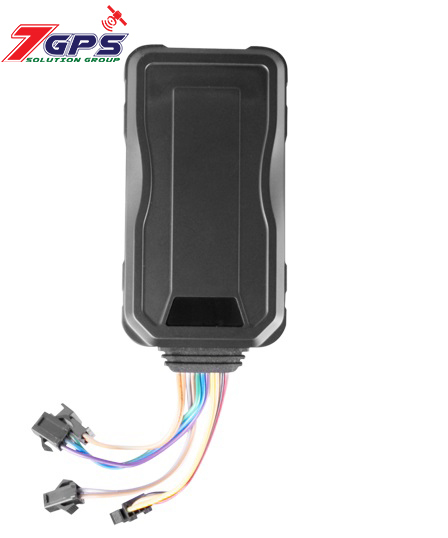

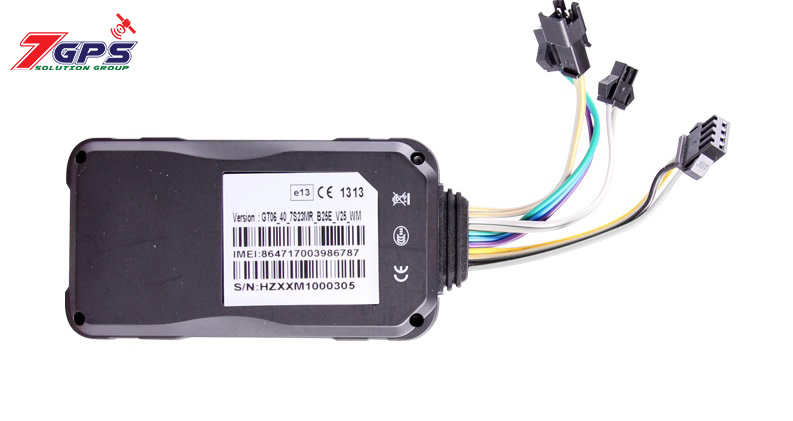

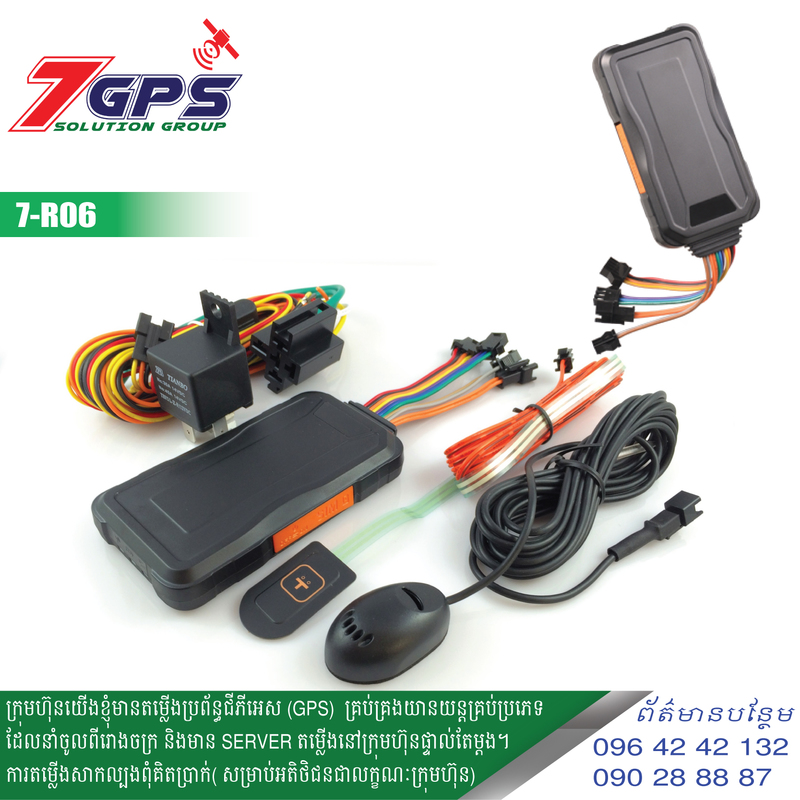

Product Display
Specification
- ACC detection
- Remote petrol/power cutoff
- SOS button
- Built-in CPU
- Voice monitoring
- Watch dog
- Automatically reboot
- Vibration alarm
GSM | 850/ 900/ 1800/ 1900 MHz | |
GPRS | Class12, TCP/ IP build in GSM Module | |
GPS | MT3326 | |
GSM antenna | Built-in GSM quad band | |
GPS antenna | Built-in GPS high gain ceramics patch antenna | |
Working voltage/current | 9-36VDC/90mA | |
Operating temperature | -25℃- 60℃ | |
Operating humidity | 5% to 95% non-condensing | |

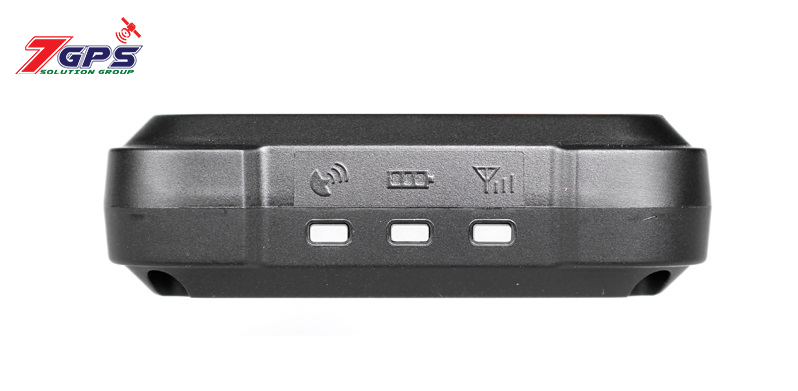

LED indicator | Three LED indicator: GPS-blue, GSM-green, Power-red | |
Tracking sensitivity | -159dBm | |
Acquisition sensitivity | -144dBm | |
Channels | 20 | |
Locating time cost | Hot start: <2 sec(open sky) Warm start: <15 sec(open sky) Cold start: <38 sec(open sky) |
|
Monitoring range | 5M | |
Certifications | E - Mark,CE | |
Dimension | 98 (L)×52 (W)×15.9 (H)mm | |
Weight | 96g | |
Battery | 3.7VDC/450mAh |
